HD IP TWINONE PTZ  |  PHRI-H3603TW

2017

NEW

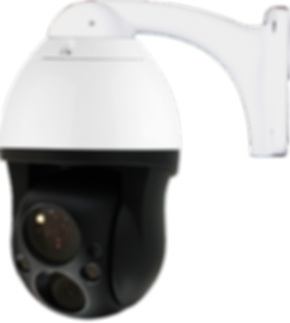

PHRI-H3603TW

2M x3/x36 HD IP TWIN-ONE

PTZ CAMERA

DEMO

New Concept of Two Sensor Camera System

The Twin-One PTZ camerasystem is capable of synthesizing two camera image separately into one image and can transfer standard resolution full-HD images synthesized on one channel. Among the screen configurations below, the main screen is the image of the long focal length zoom camera, and the small screen is the camera image where the almost fixed wide area can be observed.

Using Ultra-Low Light senor

With 2M 1/1.9”CMOS image sensor, you can check High image quality and clear color images in dim light environment. It also has the ability to powerful low noise effect and outstanding noise reduction.

Auto Temperature Control

Built-in fan and heater for harsh environments.

Weather Proof Design

With IP66 protection, the camera ensures normal operation regardless of rain, snow or storm.

Powerful zoom capability

The long focal length zoom module is x36 optical zoom, x12 digital zoom, excellent automatic focusing, and 5.8 ~ 210.0 mm focus range. Especially, since the aperture is F1.5~F4.4, it is possible to acquire better quality image than any other camera. And the other camera module that provides wide angle of view is 3x optical zoom, x12 digital zoom, excellent automatic focusing, and 3.6 ~ 10 mm focus range. Especially, since the aperture is F1.5~F2.5, it is possible to acquire better quality image than any other camera.

Micro-Step Technology

Due to the Micro-step technology, on step angle is divided by 256. Accordingly, hi accuracy as well as ultra-low sound noise can be achieved. Micro-step technology enables ultra-low speed down to 0.05̊/s

Triple codec, Simultaneous multi steaming

Triple H/W codec enables to transmit max 3 independent streams with different settings for different requirements. Therefore, it is possible to combine seamless remote video monitoring using H.264/H.265 with simultaneous transmission to Network Video Recorder.

Unit mm
